Fire Safety & Protection

Advanced Air are market leaders in Fire Safety & Protection, offering a comprehensive range of systems and products to protect your premises and staff. Our products are manufactured to the highest standard and meet the demands of the EN 1366 fire test.

We have a range of low-leakage fire and smoke dampers with release mechanisms to suit all requirements across the fire, smoke, and high-temperature spectrum, offering flexible integration capability with a wide range of actuators.

Tested Wall Type Selection Tool

wdt_ID	wdt_created_by	wdt_created_at	wdt_last_edited_by	wdt_last_edited_at	Damper Type	Model	Install	Construction	Wall Build Up	Wall Rating	Min Depth	Max Size	Test	Classification
1	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 11:26 AM	Fire Damper	0160/AFWA	Wall	Drywall	2x15mm layers each side EN520 F-Type Board	120 mins	131mm	1,000 x 1,000mm	EN1366-2	E120 (Ve io)
2	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Fire Damper	0160/AFWA	Wall	Rigid Wall	Concrete/Blockwork	120 mins	131mm	1,000 x 1,000mm	EN1366-2	E120 (Ve io)
3	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Fire Damper	0160/AFWA/Multi Unit	Wall	Drywall	2x15mm layers each side EN520 F-Type Board	120 mins	136mm	2,000 x 2,000mm	EN1366-2	E120 (Ve io)
4	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Fire Damper	0160/AFWA/Multi Unit	Wall	Rigid Wall	Concrete/Blockwork	120 mins	136mm	2,000 x 2,000mm	EN1366-2	E120 (Ve io)
5	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Fire Damper	0160/AFWA	Wall	Drywall	2x12.5mm layers each side EN520 F-type board	60 mins	94mm	1,000 x 1,000mm	EN1366-2	E60 (Ve io)
6	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Fire Damper	0160/AFWA	Wall	Rigid Wall	Concrete/Blockwork	60 mins	94mm	1,000 x 1,000mm	EN1366-2	E60 (Ve io)
7	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Fire Damper	0160/AFWA	Wall	Shaft Wall	Shaft Wall British Gypsum 1X19mm coreboard shaft side, 3x15mm f-Type EN520 board non-shaft side	120 mins	117mm	1,000 x 1,000mm	EN1366-2	E120 (Ve io)
8	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Fire Damper	0160/HVF	Wall	Rigid Wall	Concrete/Blockwork	120 mins	150mm	1,000 x 1,000mm	EN1366-2	E120 (Ve io)
9	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Fire Damper	0160 DFC	Wall	Drywall	2x15mm layers each side EN520 F-Type Board	120 mins	122mm	1,000 x 1,000mm	EN1366-2	E120 (Ve io)
10	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Fire Damper	0160 AFFL	Floor	Floor	Concrete slab	120 mins	150mm	1,000 x 1,000mm	EN1366-2	E120 (Ho i<-)
11	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Fire Damper	0160 HVF	Floor	Floor	Concrete slab	120 mins	150mm	1,000 x 1,000mm	EN1366-2	E120 (Ho io)
12	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Fire Damper	0160 AFWA	Wall	Shaft Wall	Shaft Wall Siniat 1X19mm coreboard shaft side, 2x12.5mm EN520 F-Type board non-shaft side	60 mins	85mm	1,000 x 1,000mm	EN1366-2	E90 (Ve io)
13	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Fire Damper	0160 Trimo	Wall	Shaft Wall	TrimoTerm	120 mins	120mm	1,000 x 1,000mm	EN1366-2	E120 (Ve io)
14	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Fire Damper	0160 AFWA	Wall	Drywall	Group A 90 minute flexible supporting construction to BS EN 1363-1. 2x layers of 12.5mm Type F plasterboard either side of stud.	90 mins	94mm	1,000 x 1,000mm	EN1366-2	E90 (Ve io)
15	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Fire Damper	0400 MAN	Wall	Drywall	2x15mm layers each side EN520 F-Type Board	120 mins	131mm	⌀315mm	EN1366-2	E120 (Ve io)
16	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Fire Damper	0400 MAN	Wall	Rigid Wall	Concrete/Blockwork	120 mins	131mm	⌀315mm	EN1366-2	E120 (Ve io)
17	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Fire Damper	0400 MAN	Wall	Drywall	2x12.5mm layers each side EN520 F-type board	60 mins	106mm	⌀315mm	EN1366-2	E60 (Ve io)
18	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Fire Damper	0400 MAN	Wall	Rigid Wall	Concrete/Blockwork	60 mins	106mm	⌀315mm	EN1366-2	E120 (Ho i<-o)
19	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Fire Damper	0500 MAN	Floor	Floor	Concrete slab	120 mins	150mm	⌀315mm	EN1366-2	E120 (Ho i<-o)
20	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Motorised Fire Damper	2530 AFWA	Wall	Drywall	2x15mm layers each side EN520 F-Type Board	120 mins	122mm	1,000 x 1,000mm	EN1366-2	E120 (Ve io)s
21	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Motorised Fire Damper	2530 AFWA	Wall	Rigid Wall	Concrete/Blockwork	120 mins	122mm	1,000 x 1,000mm	EN1366-2	E120 (Ve io)s
22	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Motorised Fire Damper	2530 AFWA Multi Unit	Wall	Drywall	2x15mm layers each side EN520 F-Type Board	120 mins	150mm	2,000 x 2,000mm	EN1366-2	E120 (Ve io)s
23	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Motorised Fire Damper	2530 AFWA Multi Unit	Wall	Rigid Wall	Concrete/Blockwork	120 mins	150mm	2,000 x 2,000mm	EN1366-2	E120 (Ve io)s
24	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Motorised Fire Damper	2530 AFWA	Wall	Drywall	2x12.5mm layers each side EN520 F-type board	60 mins	94mm	1,000 x 1,000mm	EN1366-2	E90 (Ve io)s
25	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Motorised Fire Damper	2530 AFWA	Wall	Rigid Wall	Concrete/Blockwork	60 mins	94mm	1,000 x 1,000mm	EN1366-2	E90 (Ve io)s
26	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Motorised Fire Damper	2530 AFWA	Wall	Shaft Wall	Shaft Wall British Gypsum 1X19mm coreboard shaft side, 3x15mm f-Type EN520 board non-shaft side	120 mins	107mm	1,000 x 1,000mm	EN1366-2	E120 (Ve io)s
27	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Motorised Fire Damper	2530 AFFL	Floor	Floor	Concrete Upstand	120 mins	150mm Upstand	1,000 x 1,000mm	EN1366-2	E120 (Ho i<-o)s
28	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Motorised Fire Damper	2530 AFFL	Floor	Floor	Concrete slab	120 mins	150mm	1,000 x 1,000mm	EN1366-2	E120 (Ho i<-o)s
29	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Motorised Fire Damper	2530 HVF	Floor	Floor	Concrete slab	120 mins	150mm	1,000 x 1,000mm	EN1366-2	E120 (Ho io)s
31	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Motorised Fire Damper	2530 Trimo	Wall	Shaft Wall	TrimoTerm	120 mins	120mm	1,000 x 1,000mm	EN1366-2	E120 (Ve io), E90 (Ve io)s
32	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Motorised Fire Damper	0400 FME	Wall	Drywall	2x15mm layers each side EN520 F-Type Board	120 mins	131mm	⌀315mm	EN1366-2	E120 (Ve io)s
33	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Motorised Fire Damper	0400 FME	Wall	Rigid Wall	Concrete/Blockwork	120 mins	131mm	⌀315mm	EN1366-2	E120 (Ve io)s
34	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Motorised Fire Damper	0400 FME	Wall	Drywall	2x12.5mm layers each side EN520 F-type board	60 mins	106mm	⌀315mm	EN1366-2	E60 (Ve io)s
35	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Motorised Fire Damper	0400 FME	Wall	Rigid Wall	Concrete/Blockwork	60 mins	106mm	⌀315mm	EN1366-2	E60 (Ve io)s
36	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Motorised Fire Damper	0500 FME	Floor	Floor	Concrete slab	120 mins	150mm	⌀315mm	EN1366-2	E120 (Ho i<-o)s
37	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Smoke Control Dampers	26SCD AFWA	Wall	Drywall	2x15mm layers each side EN520 F-Type Board	120 mins	122mm	1,000 x 1,000mm	EN1366-10	E120 (Vew io)S500 C10000(Cmod)/Multi
38	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Smoke Control Dampers	26SCD AFWA	Wall	Rigid Wall	Concrete/Blockwork	120 mins	122mm	1,000 x 1,000mm	EN1366-10	E120 (Vew io)S500 C10000(Cmod)/Multi
40	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Smoke Control Dampers	26SCD/HP AFWA 1000Pa	Wall	Drywall	2x15mm layers each side EN520 F-Type Board	120 mins	122mm	1,000 x 1,000mm	EN1366-10	E120 (Vew io)S1000 C10000(Cmod)/Multi
41	IT__admin	28/04/2025 10:01 AM	IT__admin	28/04/2025 10:01 AM	Smoke Control Dampers	26SCD/HP AFWA 1000Pa	Wall	Rigid Wall	Concrete/Blockwork	120 mins	122mm	1,000 x 1,000mm	EN1366-10	E120 (Vew io)S1000 C10000(Cmod)/Multi
					Damper Type		Install	Construction		Wall Rating

Fire Dampers

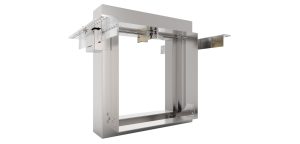

0160 Fire Damper

Advanced Air's 0160 curtain fire dampers prevent fire spread through ventilation ducts, complying with BS EN 15650 standards.

Learn More

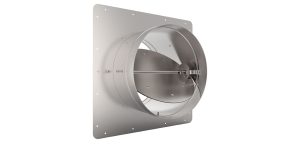

0400 MAN Fire Damper

0400 MAN fire damper has been designed to stop the spread of fire through ventilation ducts passing through walls.

Learn More

0500 MAN Fire Damper

0500 MAN fire damper has been designed to stop the spread of fire through ventilation ducts passing through floors.

Learn More

Motorised Fire Dampers

2530 Motorised Fire Damper

The Advanced Air 2530 Motorised Fire Damper is designed to meet the requirements of dynamic fire testing, offering low leakage at ambient also at high temperature during the fire test.

Learn More

0400 FME Motorised Fire Damper

0400 FME Motorised Fire Damper. Designed to stop the spread of fire and smoke through ventilation ducts passing through walls.

Learn More

0500 FME Motorised Fire Damper

0500 FME Motorised Fire Damper. Designed to stop the spread of fire and smoke through ventilation ducts passing through floors.

Learn More

Smoke Control Dampers

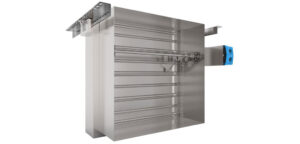

26SCD Smoke Control Damper

Our 26SCD Smoke Control Damper operates within 16 seconds and meets all requirements of BS EN 12101 Part 8 for either single or multi-compartment use with automatic systems.

Learn More

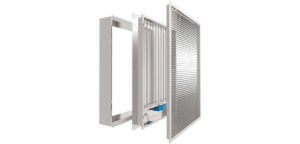

26SSD Smoke Shaft Damper

The new 26SSD Smoke Shaft Damper designed specifically for shaft smoke control systems to meet the current standard BS EN 12101-8.

Learn More

Addressable Damper Control Panels

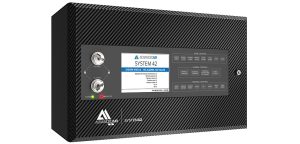

System 42

System 42 is our premier damper control system, designed to actively prevent fire and smoke from spreading through ductwork systems. Isolated from outside connections, it ensures system security and integrity.

Learn More

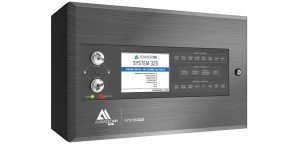

System 32S

System 32S is an addressable system encorporating core technology of our System 42, but streamlined to suit projects of up to 300 dampers. Isolated from outside connections, it ensures system security and integrity.

Learn More

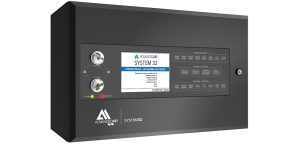

System 32

System 32 is an addressable system encorporating core technology of our System 42, but streamlined to suit projects of up to 200 dampers. Isolated from outside connections, it ensures system security and integrity.

Learn More

Hardwired Damper Control Panels

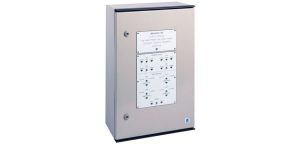

System 11

System 11 is our flagship hard-wired panel. The concept behind this system is to offer the customer a completely bespoke solution to their damper control problems.

Learn More

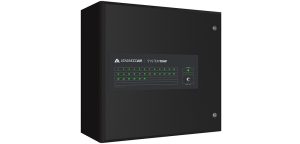

System 10AF

System 10AF is our basic hard-wired system – this means that each damper on the system is wired directly back to the controlling panel.

Learn More

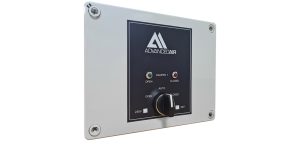

Mini Panel

The Mini panel is the simplest of all the control panels offered by Advanced Air. This could also be classed as a Damper Indication box due to its simple construction.

Learn More
