ECO 270 Fan Coil Unit
The ECO 270 fan coil unit has been designed around the electrically commutated DC motor technology using a traditional fan deck arrangement.
The motor can be set to a constant volume or can be regulated through the BMS using 0-10V control signal.
For more information, please contact our specialists.
Downloads

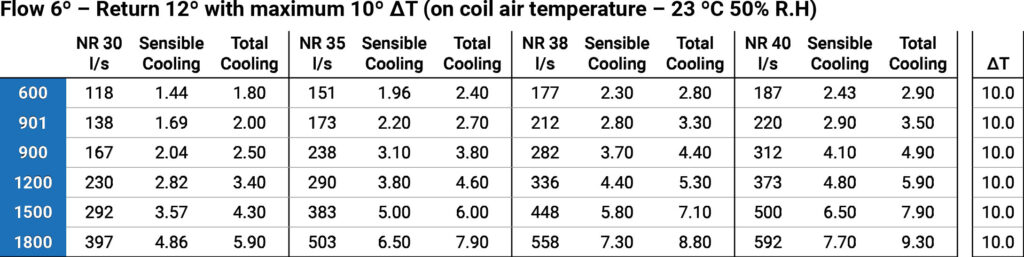

Performance
Features
- 5 sizes available
- Low noise levels NR25
- Low SFP levels
- VAV control available
- New coil design
- Handing can be easily changed on-site
- Control module to assist with commissioning
- Manual-set or BMS control
Tech Specs
Casings are rectangular in form, manufactured from 1.2mm thick folded and riveted galvanised mild steel sheet formed into rectangular panels.
Each fan coil unit is equipped with slotted hanging points incorporated in the top panel to facilitate installation via M10 threaded rods. Bottom panels are configured with key-hole slots to be easily demountable to facilitate access to the fans.
The casing incorporates a discharge plenum with 250 Φ mm circular discharge spigots.
As standard spigots are manufactured from rolled and welded galvanised mild steel sheets formed into an open-ended cylinder and are continuously mechanically fixed and sealed to the fan coil unit casing end panel, and are compatible with standard circular duct dimensions. 200 Φ or rectangular spigots are available as options.

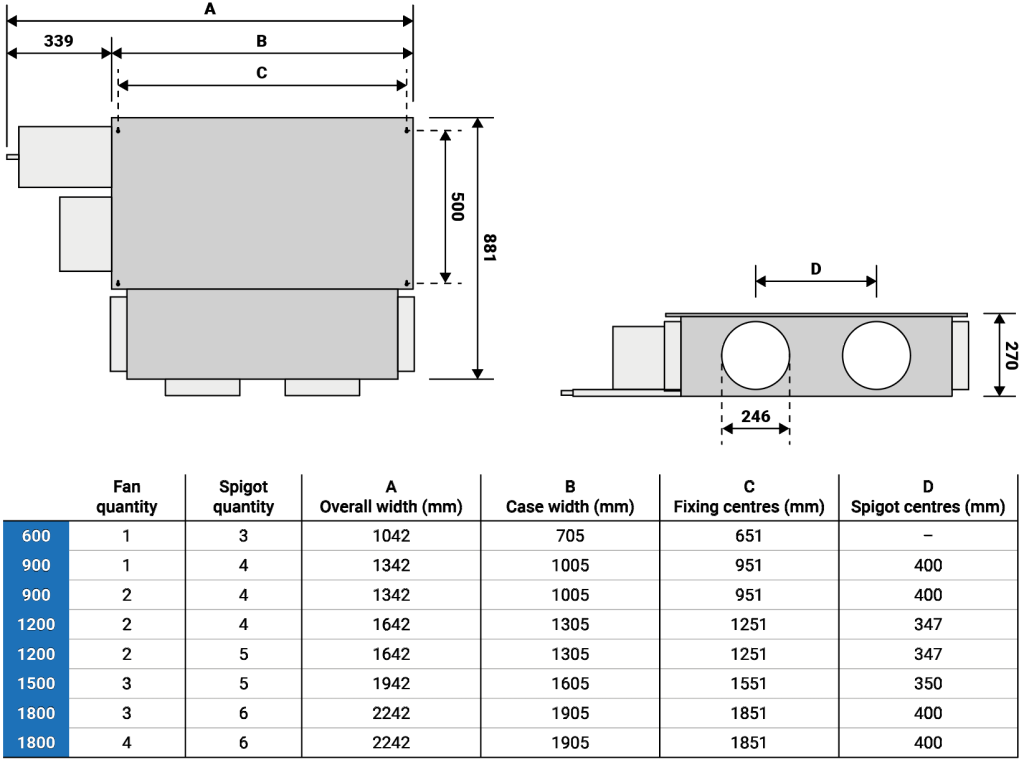

Dimensions
